Frame
FORM™ Alloy | Press Fit BB | Internal Cable Routing | Boost 148mm | Tapered Zerostack Headtube | Dropper Post Compatible. Rear Triangle

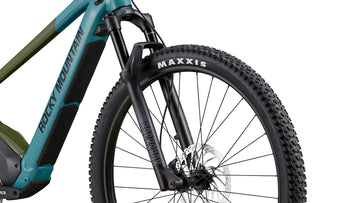

Fork
RockShox Recon Gold RL 29 = 120mm 42mm Offset | 27.5 = 100mm 37mm Offset
Front Travel
120
Headset
FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem
Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50mm
Handlebar
Rocky Mountain XC | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips
Rocky Mountain Lock On Light
Brakes
Shimano MT4100 2 Piston | Resin Pads | F:Shimano RT30 203mm | R:Shimano RT30 180mm
Shifters
Shimano Deore 12spd

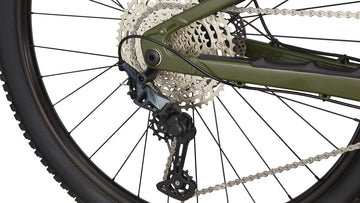

Rear Derailleur
Shimano SLX
Cranks & Chainring
Race Face Ride Cinch | 34T | 24mm Spindle | 170mm Crank Length
Bottom Bracket
Shimano SM-BBMT500
Cassette
Shimano Deore 10-51T 12spd
Chain
Shimano M6100
Front Hub
Shimano MT410 | 15mm Boost
Rear Hub
Shimano MT410 Boost 148mm
Spokes
2.0 Stainless
Rims
WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl

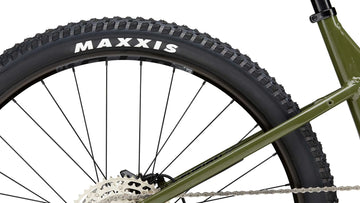

Tires
F: Maxxis Rekon 2.4 WT EXO Tubeless Ready // R: Maxxis Rekon 2.4 WT EXO Tubeless Ready
Seatpost
Rocky Mountain Toonie Drop Composire 30.9mm | XS = 100mm | SM = 100mm | MD = 125mm | LG - XL = 150mm
Saddle
WTB Volt 142

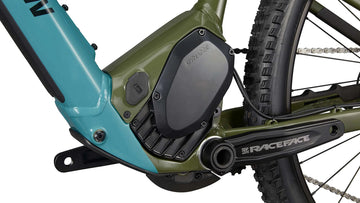

Drive System
Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada
Battery
480 Wh Removable Integrated Li-Ion | 720 Wh. in the E.U, Switzerland, and Mexico (Sizes SM-XL)
Remote
Rocky Mountain Micro Remote

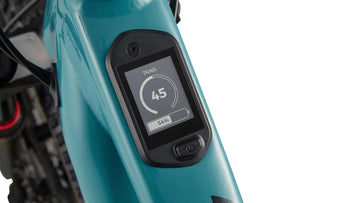

Display
Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration
Charger
Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)
Weight
48.906|22.23 KGS
Notes
We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.
