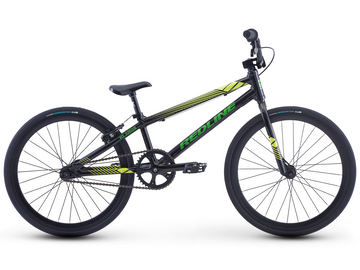

Redline MX Junior 20" Race BMX - Black

The Redline MX Junior is the perfect entry-level BMX race bike for the beginning youth racer who is 4’6” to 5’1” tall. Made with an aluminum frame and integrated head tube, the Redline MX Junior is lightweight and easy to maneuver. The MX Junior features high-quality 155mm 3-piece aluminum cranks, integrated headset, 20 inch wheels, and an integrated saddle and seat post combination for weight savings.

Specifications
Frame - 6061 alloy w/integrated headtube

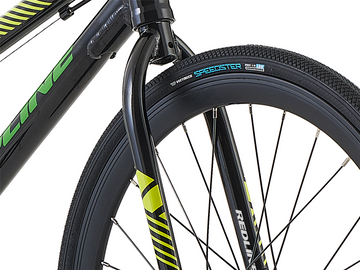

Fork - RL 'Race' hi-ten w/ tapered legs
Headset - Integrated 1"

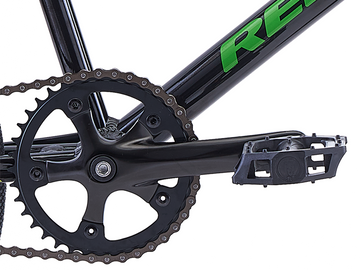

Cranks - Race aluminum 3pc, 155mm
Sprocket - 38T, alloy
Bottom bracket - Euro, square taper JIS
Cogset - 14T
Chain - KMC Z410
Front hub - Redline aluminum

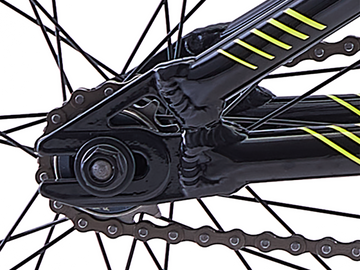

Rear hub - RL aluminum flip-flop
Spokes - 14g steel
Rims - Alloy 'Race' 20 x 1 1/8
Tyres - Vee 'Speedster' 20 x 1-1/8"

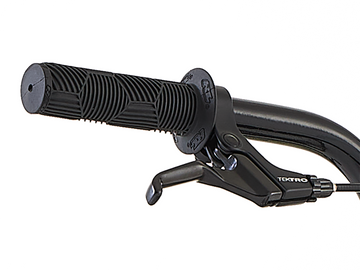

Brake levers - Tektro
Pedals - RL 'Race' 9/16" PC pedal

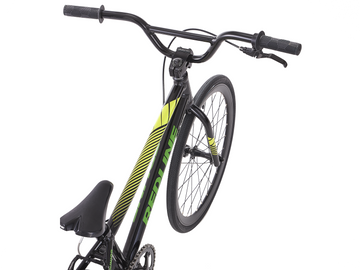

Handlebar - RL 'Race' aluminum 4.5" rise / 10° back / 2° up
Grips - Redline hex Expert w/plugs
Stem - RL hollow point aluminum 1" threadless
Seat - RL 'Race' integrated w/22.2 post
Brakes - Tektro '926AL' linear

Geometry
Frame Size - 20"
Bike Top Tube Length - 18.5 "
Bike Head Angle - 73.0 °
Bike Seat Angle - 69.0 °
Bike Chain Stay Length - 13.5 "
Bike Bb Height - 10.8 "
Bike Stem Length - 40.0 mm
Bike Handlebar Width - 24.0 "
Bike Crank Length - 155.0 mm
