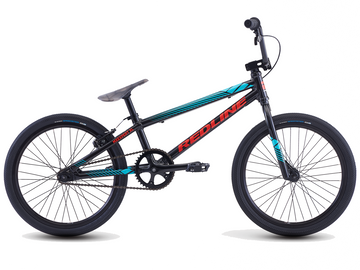

Redline MX Expert XL 20" Race BMX - Black

The Redline MX Expert XL is top of class for value and quality. Aluminum alloy rims, Vee Speedster 20 × 1.6 inch front and 20 × 1.4 inch rear tyres, Redline premium aluminum frame, and integrated head tube all come together to make the Redline MX Expert XL lightweight and easy to manouevre. Fit riders 5'2" to 5'6".

Specifications
Frame - 6061 alloy w/integrated headtube

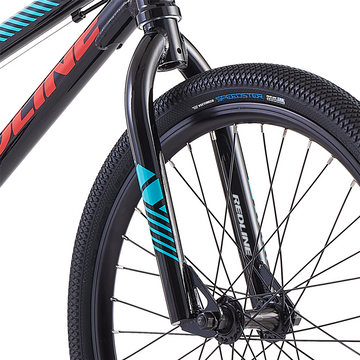

Fork - RL 'Race' hi-ten w/tapered legs
Headset - Integrated 1 1/8"

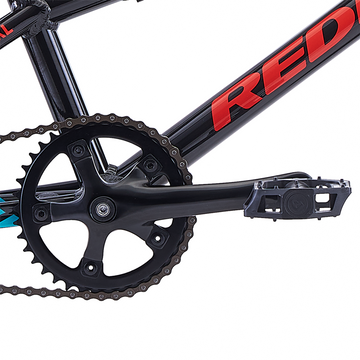

Cranks - Race aluminum 3pc, 170mm
Sprocket - 39T, alloy
Bottom Bracket - Euro
Cogset - 14T
Chain - KMC Z410
Front Hub - Redline aluminum

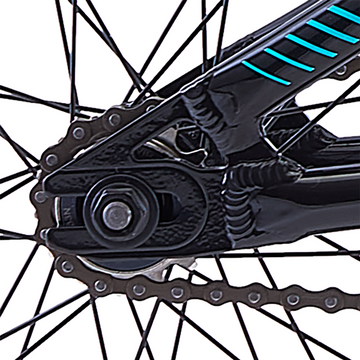

Rear Hub - RL aluminum flip-flop
Spokes - 14g steel
Rims - Alloy 'Race' 20 X 1.5, 36H
Tyres - Vee 'Speedster' (F)20 X 1.6" / (R)20 X 1.4"

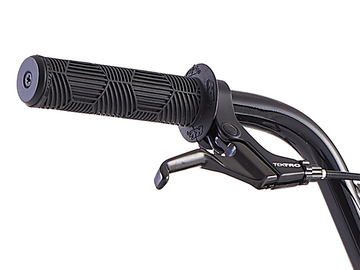

Brake Levers - Tektro
Pedals - RL 'Race' 9/16" Pc pedal

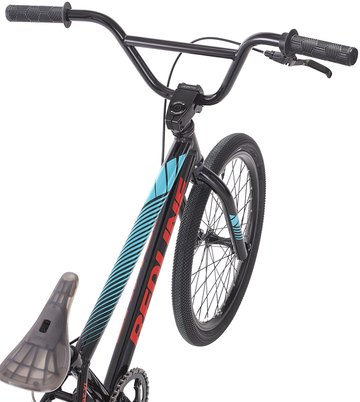

Handlebar - RL 'Race' 6.5" rise / 12° back / 1° up
Grips - Redline hex 'Expert' w/plugs
Stem - RL hollow point aluminum 1 1/8" threadless
Seat - Pivotal 'Race'
Seatpost - Pivotal 26.8
Brakes - Tektro 'BX-1' linear

Geometry
Frame Size - 20"
Bike Top Tube Length - 20.0 "
Bike Head Angle - 73.0 °
Bike Seat Angle - 69.0 °
Bike Chain Stay Length - 13.8 "
Bike Bb Height - 11.2 "
Bike Stem Length - 50.0 mm
Bike Handlebar Width - 26.0 "
Bike Crank Length - 170.0 mm
