THE HARD HITTING LONG-TRAVEL ENDURO SPECIALIST!

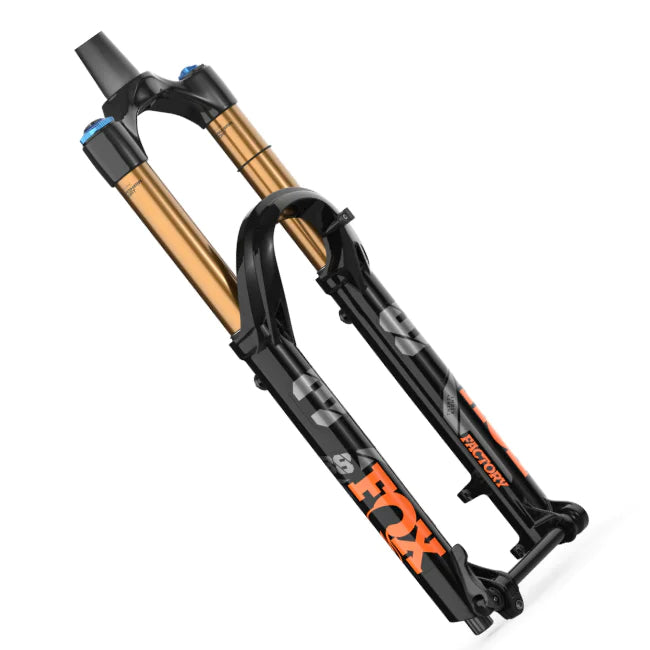

The Fox 38 is the evolution of the Fox 36, featuring a beefy 38mm stanchion chassis for increased strength and precision when navigating the toughest terrains. Low legs are equipped with air- and oil-specific channels, a floating axle, and the same bleed valves as the 40 model, designed to maximize performance. The GRIP2 damper allows for externally adjustable high and low-speed compression and rebound, combined with the highly tunable EVOL air spring, resulting in the ultimate single crown fork for extreme terrain.
Specifications:
-
Spring: Updated Float EVOL air spring.
-
Dampers: GRIP2 with VVC, external HSC / LSC and HSR / LSR. Rebound at base.
-
Lowers: 15mm x 110mm QR
-
Offset: 44mm
-
Wheel size: 29"
-
Colour: SHINY BLACK
-
Travel: 170mm

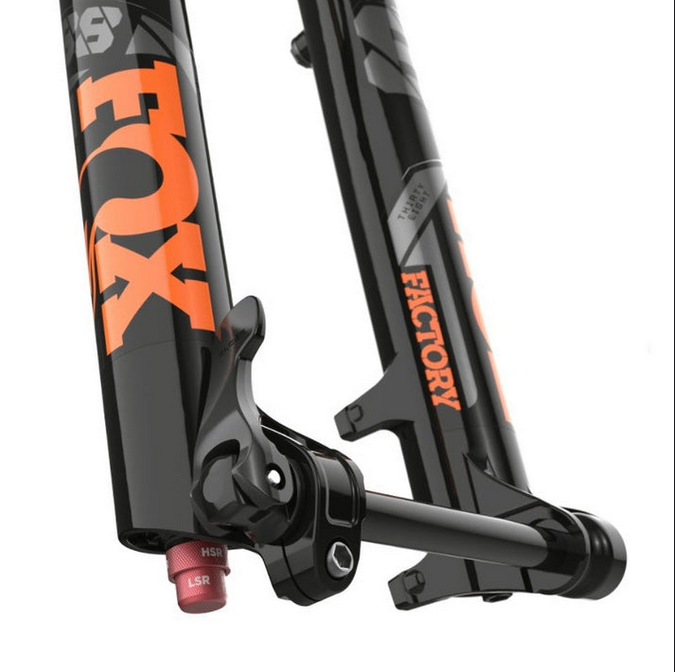

FLOATING AXLE
Floating axles might look similar to other axles, but in fact they offer a distinct performance advantage due to their unique ability to match the exact width of the fork’s wheel mounting surface precisely to the front hub flange spacing, thus creating perfect chassis alignment and eliminating unwanted friction between the upper and lower fork legs. Floating axles provide much smoother suspension movement throughout the entire range of the fork’s travel, notably improving sensitivity and overall ride quality.
LOWER LEG BYPASS CHANNELS
As a fork compresses, the air volume within the lower legs decreases, increasing air pressure. The more the fork compresses, the more pressure increases. This effect can have the unintended consequence of preventing full travel from being achieved. Our lower leg channels help alleviate this issue by dramatically increasing air volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping.

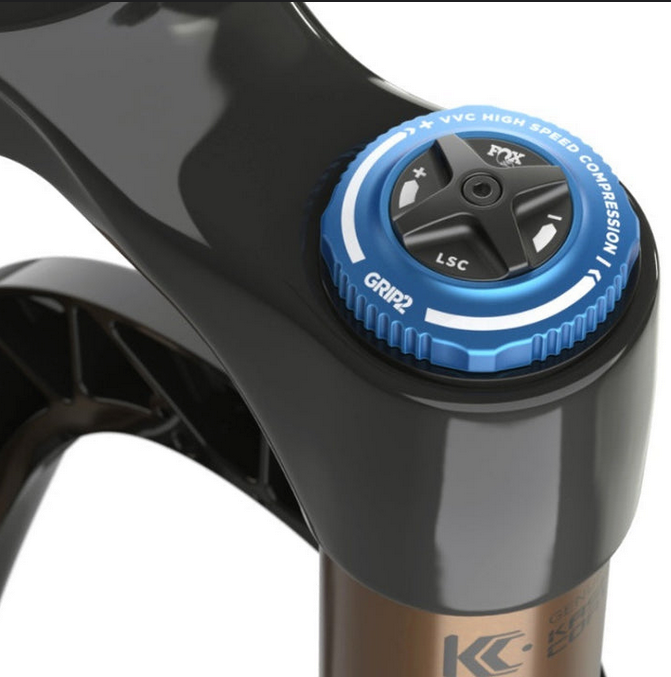

GRIP2
Our GRIP2 damper is the benchmark for unparalleled ride quality and ultra-precise adjustability. GRIP2 includes our patented Variable Valve Control (VVC) technology which allows for external fine-tuning of suspension performance. GRIP2 achieves with the twist of a knob what typically requires the time consuming and complicated task of completely disassembling and reassembling the fork.
BLEEDERS
Our lower leg bleeders allow for atmospheric pressure equalization at the simple press of a button. Pressure build-up in the lower legs dramatically decreases fork performance, preventing full travel from being achieved, and diminishing small bump sensitivity and
