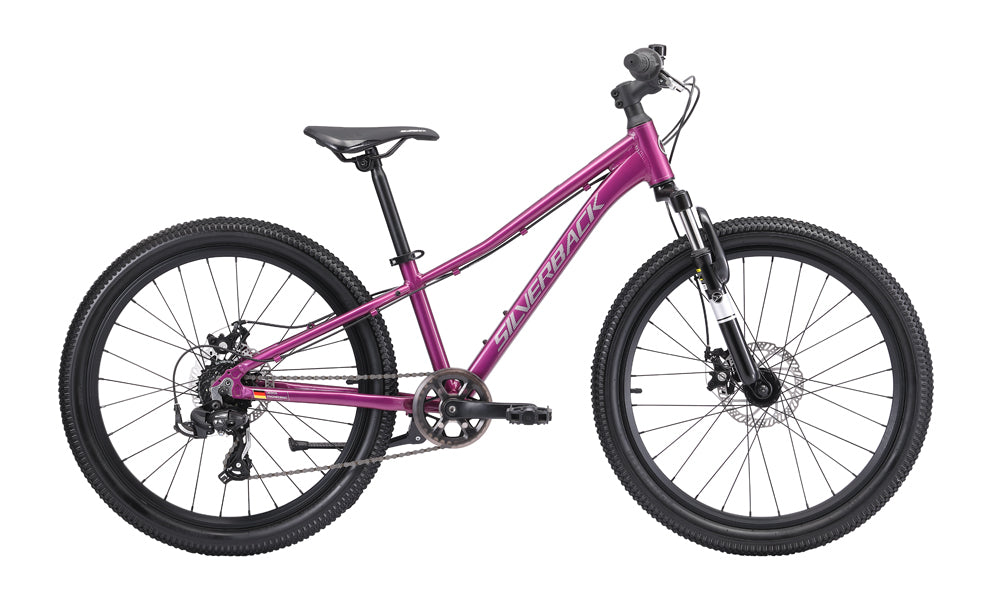

The Spyke 24 Suspension is an awesome bike that will have your kid riding on 24" wheels in a flash! With its 50mm suspension fork and high-volume 2'35" knobbly mountain bike tires, this bike is perfect for hitting the trails, cruising the streets, tearing it up at the local pump track, or even just riding to school and back. Plus, it's got a super easy-to-use MICROshift/Sunrace 1x7 speed drivetrain. And let's not forget about the cool low standover frame design, disc brakes, and integrated kickstand. This bike has it all!
FRAME Hydro formed 24" 6061 Aluminium, 11/8" Headtube 135mm OLD, QR Dropouts, disc brake mounts
FORK Zoom Steel Suspension fork, 50mm travel, Coil
HEADSET 1-1/8" Headset, Press in cups, Black
SPACER Alloy spacer, 10mm for 28.6mm Diameter Steerer.
BOTTOM BRACKET Square Tapered Bottom Bracket, BSA 68mm
HANDLEBAR 580mm x 25.4, 10°, H:15mm, Matt Black
STEM 25.4mm E:60mm H:41mm 15° , Alloy Black
GRIP TPR Grips, Custom Colour, 125mm
WHEELSET SURFACE Custom Wheelset
RIM-FRONT 24" Alloy Single Wall, 28H, Black
RIM-REAR 24" Alloy Single Wall, 28H, Black
HUB-FRONT F: Joytech, 100x9 QR, 6 Bolt, 28H Front Hub R: Joytech, 135x9 QR, 7-Speed, 6 Bolt, 28H Rear Hub
TIRE-FRONT 24 x 2.35" Wanda P1226
TIRE-REAR 24 x 2.35" Wanda P1226
SPOKE Spoke Protector for 28H
CASSETTE 7 Speed
CHAIN Shimano CN-HG40 Chain, 104 Links with End Pin
CRANKSET SURFACE Alloy Crank, 140mm, 32T chainring, Black
PEDAL 9/16? Ball, PP, Black
BRAKE-FRONT Tektro MD-M280 Mechanical Disc Brake
BRAKE-REAR Tektro MD-M280 Mechanical Disc Brake
ROTOR-FRONT Tektro 160mm, 6-Bolt Rotor
ROTOR-REAR Tektro 160mm, 6-Bolt Rotor
BRAKE LEVER-LEFT Tektro Alloy Brake Lever, Black & Silver
BRAKE LEVER-RIGHT Tektro Alloy Brake Lever, Black & Silver
DERAILLEUR-REAR Shimano RD-TY500 Rear Derailleur, 6/7-speed
SHIFTER-RIGHT Shimano SL-RV400-7R Revo Shifter. 7-Speed
FREEWHEEL Shimano CS-HG200-7 Cassette, 7-speed, 12-28T
SADDLE SURFACE Kids Saddle
SEAT POST 27.2mm x 250mm, Alloy Black
SEAT POST CLAMP 31.8mm w/o Logo, Alloy , Black, QR
KICKSTAND Kickstand, Steel, for 24"
MUDGUARD NIL
