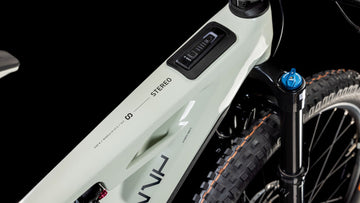

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks and reduced maintenance, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800 Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a direct mount chainguard to keep you driving forwards even when the going gets rough.
FRAME C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH, Full Integrated Battery, Advanced
FORK Fox 38 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 170mm

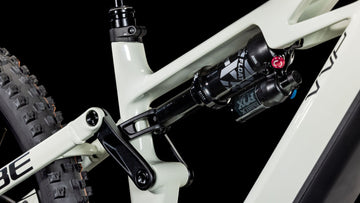

SHOCK Fox Float X Performance, 230x65mm, Adjustable LSR w/ 2-Pos. Lever
DERAILLEUR REAR Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
SHIFTERS Shimano XT SL-M8100-IR, Direct Attach
BRAKES Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
CRANKSET ACID MTB Hybrid Pro, 36T
BOTTOM BRACKET
CHAIN KMC e12
CASSETTE (TEXT) Shimano Deore CS-M6100, 10-51T
HANDLEBAR CUBE Rise Trail Bar 35
HANDLEBAR STEM CUBE Performance Stem E-MTB 35, FPI-Link
HEADSET ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
GRIP ACID Disrupt, Soft Compound
SEAT POST CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
SADDLE ACID Venec EMTB Trail 140
RIM Newmen Performance 30, 28/32 Spokes (Base/Strong), 15x110mm / 12x148mm, Tubeless Ready
TYRES F: Schwalbe Magic Mary, Addix Soft, Super Trail, Kevlar, 2.4 | R: Schwalbe Tacky Chan, Addix Soft, Super Gravity, Kevlar, 2.4
MOTOR/DRIVE UNIT Bosch Drive Unit Performance Line CX, Smart System
BATTERY Bosch PowerTube
BRAKE TYPE Hydraulic Disc Brake
WEIGHT 24.6 kg
