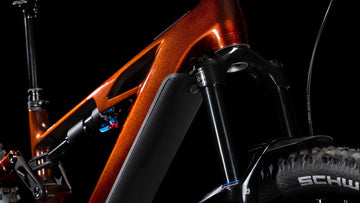

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks and reduced maintenance, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800 Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a direct mount chainguard to keep you driving forwards even when the going gets rough.
FRAME C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
FORK SR Suntour Aion 38X 2CR Air, Tapered, 15x110mm, Lockout, 170mm

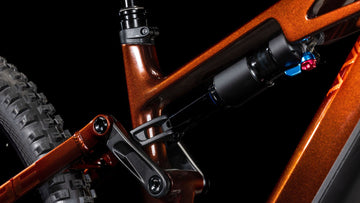

SHOCK SR Suntour Edge EVO 2CR 230x65mm
DERAILLEUR REAR Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
SHIFTERS Shimano Deore SL-M6100, Rapidfire-Plus
BRAKES Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
CRANKSET ACID MTB Hybrid Pro, 36T
CASSETTE (TEXT) Shimano Deore CS-M6100, 10-51T
HANDLEBAR CUBE Rise Trail Bar 35
HANDLEBAR STEM CUBE Performance Stem E-MTB 35, FPI-Link
HEADSET ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
GRIP ACID Disrupt, Soft Compound
SEAT POST CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
SADDLE ACID Venec Lite
HUBS F: CUBE Engineered By Newmen, 15mm, Boost, 6-Bolt | R: CUBE Engineered By Newmen, 12mm, Boost, 6-Bolt
RIM CUBE EX30, 32H, Disc, Tubeless Ready
TYRES F: Schwalbe Magic Mary, Performance, 2.4 | R: Schwalbe Big Betty, Performance, 2.4
MOTOR/DRIVE UNIT Bosch Drive Unit Performance Line CX, Smart System
BATTERY Bosch PowerTube
BRAKE TYPE Hydraulic Disc Brake
WEIGHT 25.2 kg
