Building an ultralight Bosch-powered full-suspension bike isn't easy. That's why the AMS Hybrid ONE44 C:68X frame makes use of our most advanced C:68X® carbon material, for maximum possible strength and stiffness with the lowest possible weight. The 400Wh battery is incorporated into the down tube, as close to the new, lightweight Bosch SX motor as possible to improve handling, and the frame is PowerMore-ready for a 250Wh range boost with the optional battery pack. Internal cable routing complements the frame's sleek silhouette and there's a lightweight direct mount chain guide. With a UDH gear hanger and angle adjustable headset so you can tweak the handling to suit your riding style, it's got everything you need for fast-paced trail riding.

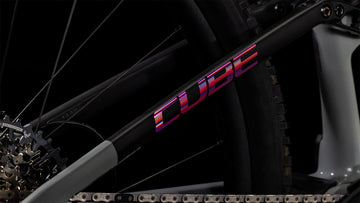

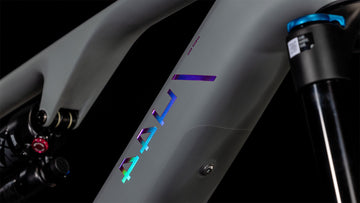

FRAME C:68X® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing
FORK Fox 36 Float Performance GRIP, 3-Position w/ Micro Adjust, Tapered, 15x110mm, 140mm

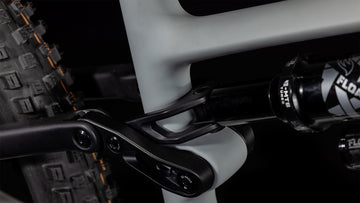

SHOCK Fox Float X Performance, 210x55mm, Adjustable LSR w/ 2-Pos- Lever
DERAILLEUR FRONT

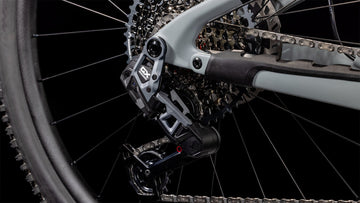

DERAILLEUR REAR Sram GX Eagle AXS™ Transmission, 12-Speed
SHIFTERS Sram AXS™ Pod Ultimate Controller
BRAKES Magura MT7, Hydr. Disc Brake (203/180)

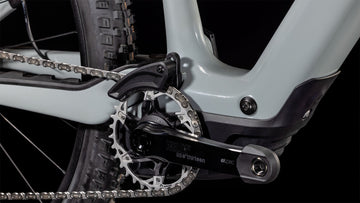

CRANKSET e*thirteen Helix Race Alloy e*spec Crank, 32T
BOTTOM BRACKET
CHAIN Sram GX Eagle™ Transmission
PEDALS
CASSETTE (TEXT) Sram XS-1275, 10-52T
HANDLEBAR Newmen Evolution SL 318.25, 780mm
HANDLEBAR STEM Newmen Evolution SL 318.4, 31.8mm
HEADSET ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
GRIP ACID Disrupt, Soft Compound
SEAT POST CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
SADDLE Natural Fit Nuance SL
HUBS
RIM Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
TYRES
LIGHT(S)
ACCESSORIES
MOTOR/DRIVE UNIT Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System
MOTOR POWER (WATTS) 250
MOTOR TORQUE (NM) 55
BATTERY Bosch CompactTube 400
BRAKE TYPE Hydraulic Disc Brake
WEIGHT 18.4 kg
