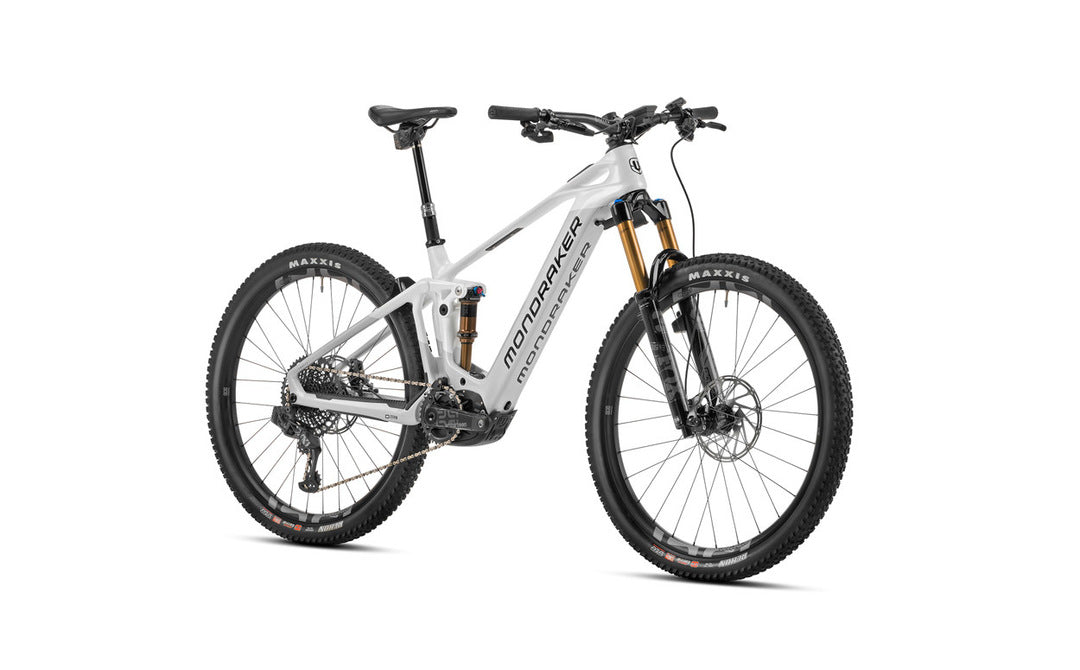

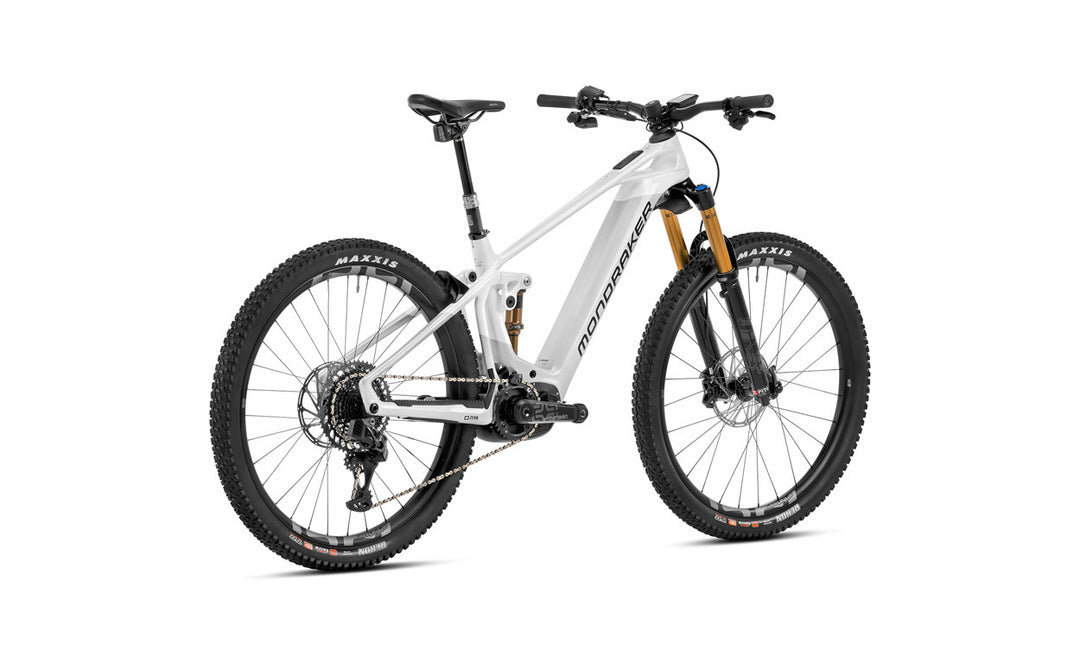

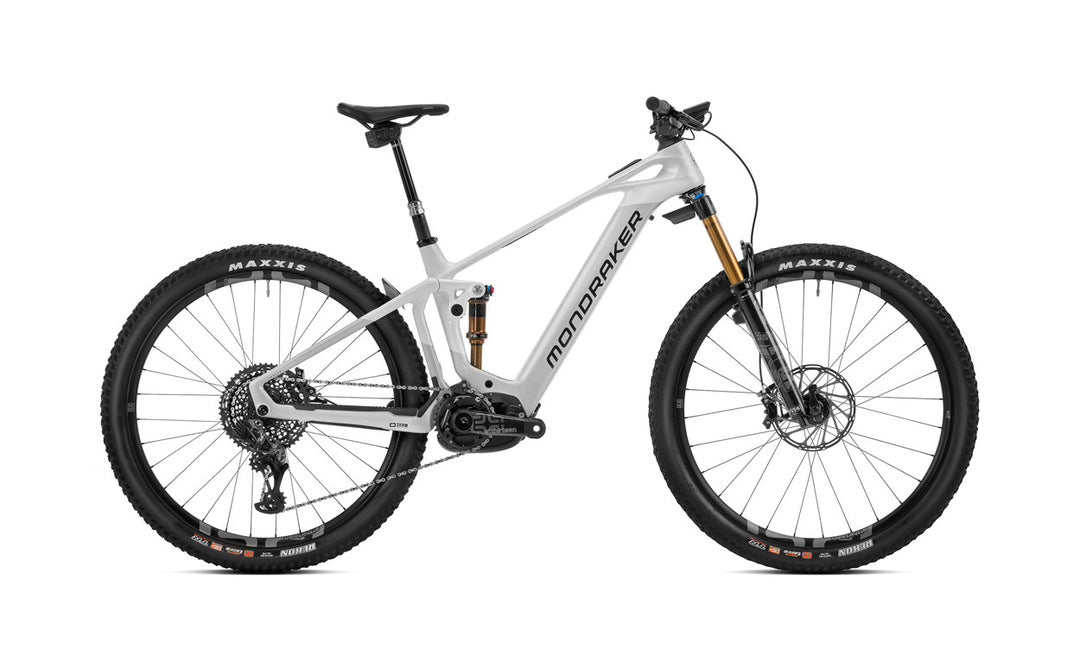

01. FRAME Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery
01A. FRAME Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive p
02. FORK Fox 36 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebo
03. REAR SHOCK Fox Float DPS Factory Kashima evol LV, 205x65mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
04. SHOCK SETTINGS Medium compression, Medium rebound, 0.4 volume spacer
05. HEADSET Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
06. STEM Onoff Krypton FG 30mm, CNC, 31.8mm barbore
07. HANDLEBAR Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9 degree backsweep, 5 degree upsweep, 31.8mm barbore
08. GRIPS Onoff Desert, 1lock-on, 135mm
09. SEATPOST RockShox Reverb Stealth AXS, diameter 31.6mm, S size: 390x125mm, M size: 440x150mm, L/XL size: 440x170mm
10. SADDLE FIZIK Terra Aidon X1 145mm
11. FRONT BRAKE Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
12. REAR BRAKE Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
13. BRAKE LEVER Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
14. FRONT HUB e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
15. REAR HUB e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
16. FRONT TIRE Maxxis Rekon 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
17. REAR TIRE Maxxis Rekon 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
18. CRANKSET E.13 TRS Race carbon ebike, 165mm
19. RINGS Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD
20. PEDALS N/A
21. CHAIN Sram GX Eagle, 12s, Powerlock
22. REAR DERAILLEUR Sram XX1 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12s, X-actuation 1:1 with battery cover
23. CASSETTE Sram XG-1295, 10-52T, 12s
24. MOTOR Bosch Performance Line CX Cruise (25Km/h) Smart System
25. BATTERY Bosch Powertube 750Wh
26. DISPLAY Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
27. DERAILLEUR HANGER Mondraker M068
