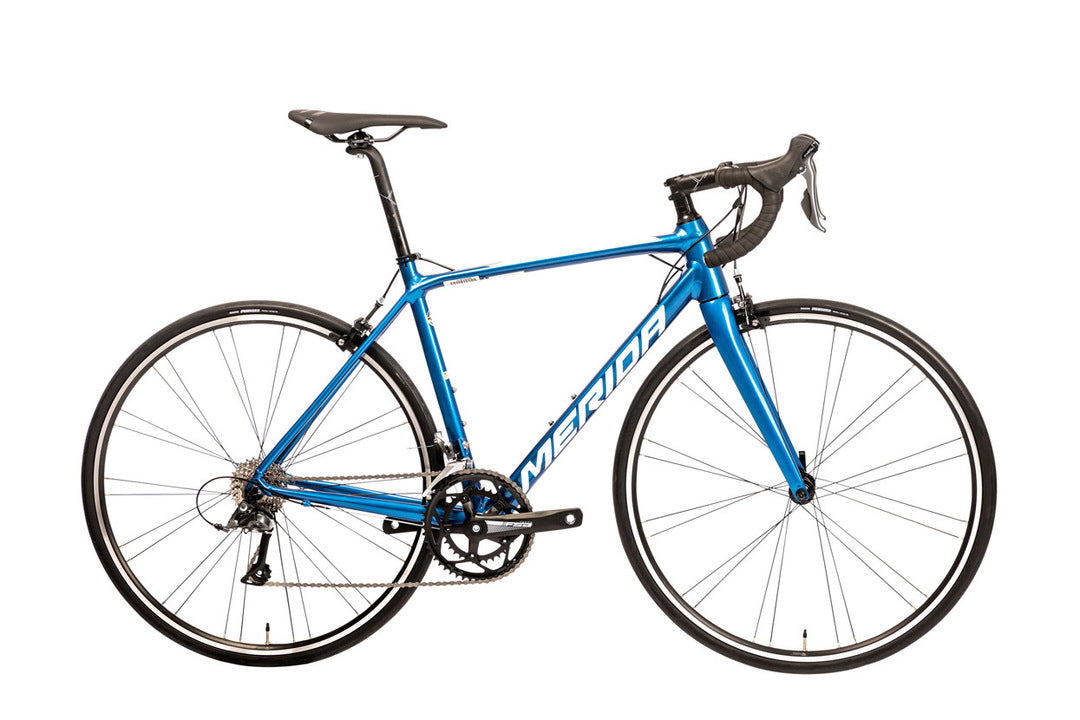

22 Merida Scultura Rim 100 - Blue -

01. FRAME     SCULTURA LITE BSA; MAT aluminium; 700x25C max. WHS; 100x9/ 135x9 AST; BSA BBR
02. SIZES     XXS-XS-S-SM-ML-L-XL
03. FORK     SCULTURA RIM CF2; 700x25C max. WHS
04. GEARS     2 x 8
05. CHAINWHEEL     FSA Tempo; 50-34 ATC
06. CRANK/SIZE     165 mm-4S/3S/XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
07. BOTTOM BRACKET     FSA TH-7420ST, Cartridge Bearing
08. CASSETTE     Sunrace CS8; 11-28 ATC; 8 GER
09. CHAIN     Sunrace CN-M84
10. DERAILLEUR - FRONT     Shimano Claris
11. DERAILLEUR - REAR     Shimano Claris; GS
12. SHIFTERS     Shimano Claris
13. BRAKES     Lee Chi ROAD Dual Pivot
14. ROTORS     -
15. HANDLEBAR     MERIDA EXPERT SL; MAT aluminium; 380mm(XXS) , 400mm (XS-S) , 420mm (S/M-M/L) , 440mm (L-XL)
16. STEM     MERIDA COMP CC; 31.8 DSH; MAT aluminium; -6 ASD
17. STEM/SIZE     70 mm-4S/3S, 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
18. HEAD SET     MERIDA M2339 Neck
19. SEAT POST     MERIDA COMP CC; MAT aluminium; 27.2 DSP; 5 SSB
20. SADDLE     MERIDA COMP SL; V-mount
21. HUB - FRONT     Road seal bearing; 100x9 WHF; 24 SPH
22. HUB - REAR     Road seal bearing; 130x9 WHR; 28 SPH
23. AXLE - FRONT     QR
24. AXLE - REAR     QR
25. SPOKES     Black stainless
26. RIMS     MERIDA COMP SL; 17 IWR; 20 HRI; MAT aluminium; not Tubeless ready
27. TYRES     Maxxis Pursuer; 700x25C; fold
