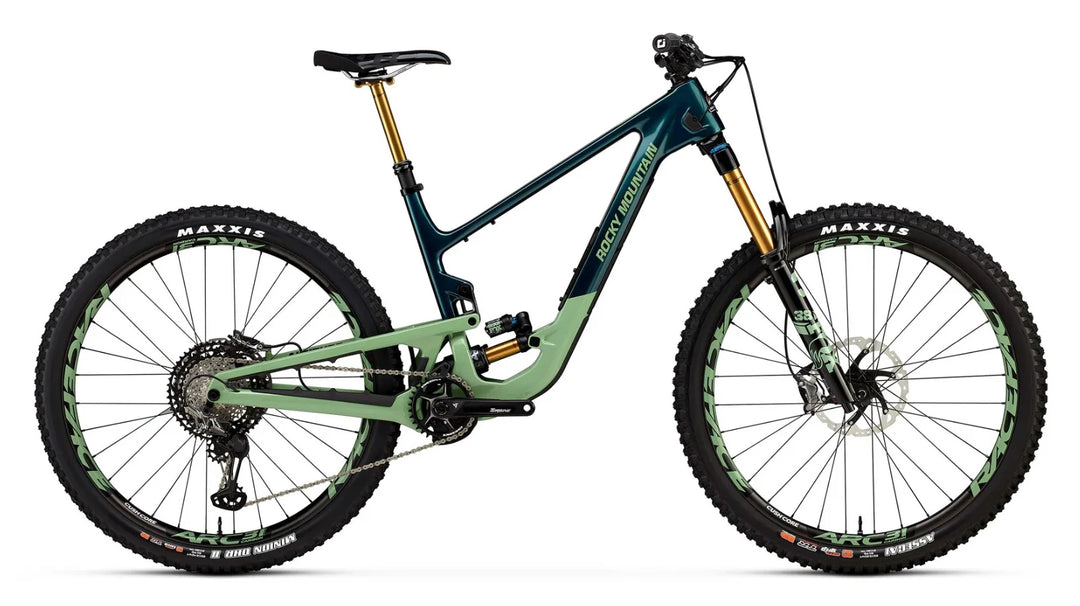

The Altitude Carbon is purpose-built to go fast and demolish steep trails. Fine tune your ride by opting for full 29'' or MX, using the built-in flip chip (sizes MD-XL) or adjust the RIDE-4™ with a single Allen key. Its total enduro capabilities can help you secure that “top step” and own those demanding group rides with confidence. The redesigned Altitude Carbon also features internal routing and the new PenaltyBox™ 2.0 downtube storage. With so much capability in your corner, it’s time to push limits, climb faster, and charge. Enduro lives at Altitude.
"
Frame SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | BSA Bottom Bracket | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry |160mm Travel. SMOOTHWALL™ Carbon Rear Triangle
Fork Fox 38 Float EVOL GRIP2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset
Rear Shock Fox Float X2 Factory | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ
Handlebars Race Face Next R | 780mm Width | 35mm Rise | 8° Backsweep | 5° Upsweep | 35mm Clamp
Grips ODI Elite Pro Lock On
Stem Race Face Turbine R | 0° Rise | All Sizes = 40mm
Seatpost Fox Transfer Factory Series 30.9mm | SM = 150mm | MD = 175mm | LG - XL = 200mm
Saddle WTB Volt Race 142
Shifters Shimano XTR
Rear Derailleur Shimano XTR
Brakes Shimano XTR Trail 4 Piston | IceTec Metal Pads
Cassette Shimano XTR 12s 10-51T
Cranks & Chainring Race Face Turbine Cinch | 32T | 30mm Spindle | SM = 165mm | MD - XL = 170mm
Chain Shimano XTR 12s
Bottom Bracket Race Face BSA 73 30mm
Headset FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5"" Crown Race
Front Hub DT Swiss 350 Boost 15mm
Rear Hub DT Swiss 350 Boost 148mm | 36T Star-Ratchet
Spokes DT Swiss Competition 2.0/1.8/2.0
Tires F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready // Cushcore Trail Tire Inserts | Lightweight | Tire & Rim Protection
Rims Race Face ARC Carbon 31 | 32H / Tubeless Ready - Tape / Valves Incl
Weight NW 15.4kg
